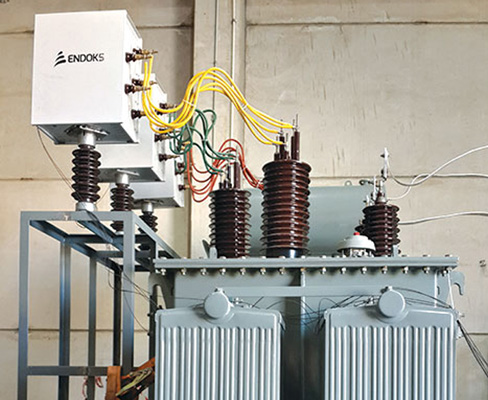

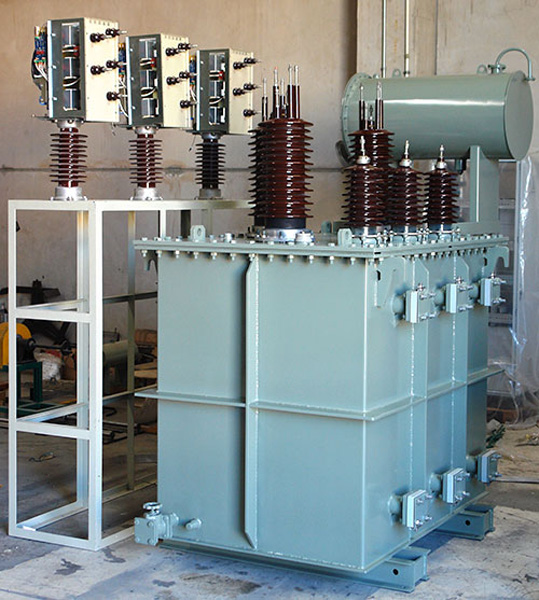

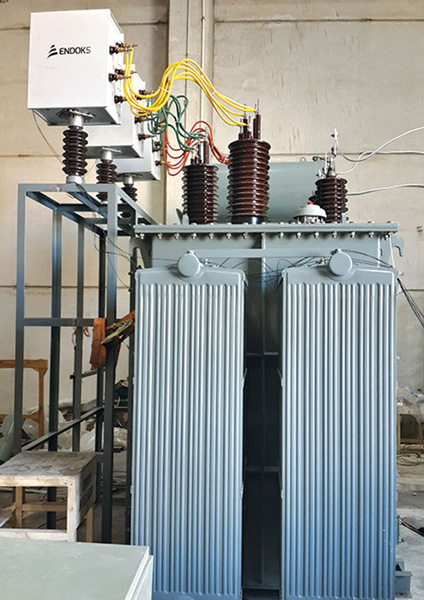

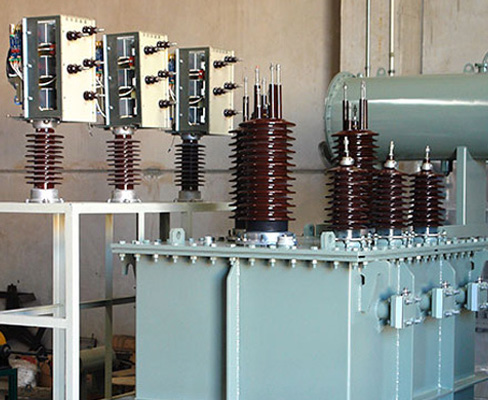

MAGNETIC CONTROLLED REACTOR (MCR)
APPLICATION
- MCR is a thyristor based active compensation System
- Connected to the grid in parallel and reactive power conrolled between 2-100%
- MCR’s reactive power control principle based on changing impedances by fully loading reactor
- Has Reactive Power Control, Passive Harminic Filtration and Voltage regaulation features
- Main application field of MCRs are compensation of capacitive reactive power caused by XLPE cables and inductive loads.
DESIGN
- Up to 36kV 10MVAr
- Closed Circle Power Control
- Remote Monitoring / Control
- MCR’s reactive power continuously controlled between 2-100%
- Losses 1,5% of total power.
